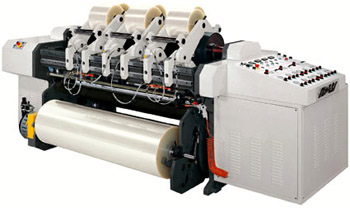

SW600 Centre Surface Slitter Rewinder

High performance centre-on-surface, robust slitter-rewinder, vibration free even at high speeds. Automatic unwinding and rewinding tension control system, providing fine control without operator adjustment through the full rewinding cycle.

Easy accessibility for roll change operations, with quick unloading of the finished rolls, hydraulically-powered, onto special trolleys. Controlled regulation of tension between the draw roller and the central contact drum, with an indicator for visual inspection. Both draw unit and rewind station are by DC motors.

SPECIFICATIONS	SW/601	SW/602
Max. web width:	1000/1600/2000mm	1000/1600/2000mm
Max. unwind diameter:	1000mm	600/750mm
Max. rewind diameter:	600mm	600mm
Max. slitting speed:	500m/min	500m/min
