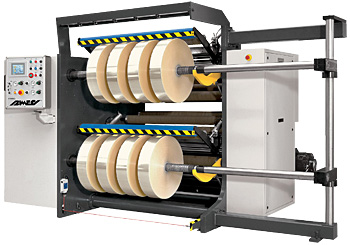

STM83 Duplex Slitter Rewinder with Shaftless Unwind

The Bimec STM/83 Slitter Rewinder is a machine with two-spindle centre rewind. This format has become the universal standard for general purpose slitter rewinders. Features include:

High mechanical strength providing vibration-free production at high speeds. Shaftless unwind with automatic tension control. Automatic line and edge guide optional. Razor blade slitting over grooved support roll standard, rotary shear knife slitting optional. Computerised touchscreen control system incorporating programmable rewind tension, metre counter and roll diameter standard. Pivot-mounted control panel. Integrated, machine mounted rewind unloading device featuring a fixed post and swing-out horizontal arms.

SPECIFICATIONS	STM/83.2	STM/83.3
Web Widths:	1000/1300/1600/1800mm
Max. Unwind Diameter:	1000mm
Max. Rewind Diameter:	800mm
Min. Slitting Width:	25mm
DC motors:	2	3
Max. Speed:	600m/min	600m/min
