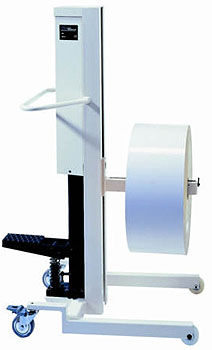

RLS Roll Lifter

RLS roll lifters are mobile, hydraulic lifting units for handling of production rolls from the storage area to the printing press. The RLS-line includes three models RL7S, RL11S and RL14S with different lifting heights. The RLS roll lifter unit consists of a solidly welded frame, two fixed front wheels and two revolvable rear wheels. The distance between the front wheels has been adjusted to enable them to go under an EUR-pallet. The RLS is designed with a foot operated hydraulic pump and gear train for easy lifting and lowering. The support shaft is fitted with ball bearings on the top side. The support shaft can easily be replaced by a yoke.

Specifications	RL7S	RL11S	RL14S
Max. weight of roll:	350kg	350kg	350kg
Lifting height:	715mm	1190mm	1500mm
Support shaft:	430mm	430mm	430mm

Options:

• Lifting yoke for handling of rolls with max. width of 700 mm in connection with bilateral machines.
• Support shaft of 620 mm for rolls of max. width of 620 mm.
