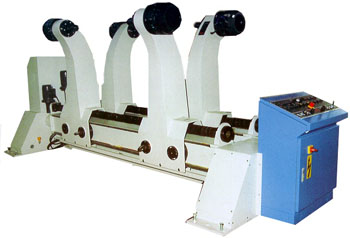

PBF201 Mill Roll Stand
The PBF 201 is a high speed, high capacity unwind stand and is well suited to the paper industry.
| Max. reel diameter: |
2100mm |
| Max. reel width: |
2000mm |
| Max. reel weight: |
5200kg |
Single or double position available.
If fitted with pneumatic disc brakes, it can be controlled by an automatic tension control system. Expanding core chucks are available on request.

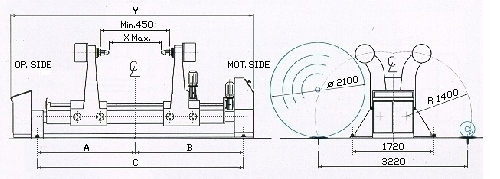

| PBF 201 |
| Width (mm) |
1400 |
1600 |
1800 |
2000 |
| A |
1760 |
1860 |
1960 |
2060 |
| B |
1980 |
2080 |
2180 |
2280 |
| C |
3740 |
3940 |
4140 |
4340 |
| X Max. |
1500 |
1700 |
1900 |
2100 |
| Y |
4380 |
4580 |
4780 |
4980 |
| Weight (kg) |
4600 |
4800 |
5000 |
5200 |
|
