PBF182 Mill Roll Stand
PBF 182 is the high speed version of the PBF 180 mill roll stand and is suited to both the paper converting and corrugating industries.
| Max. reel diameter: |
1520mm |
| Max. reel width: |
2650mm |
| Max. reel weight: |
4900kg |
Single or double position available.
If fitted with pneumatic disc brakes, it can be controlled by an automatic tension control system. Expanding core chucks are available on request.

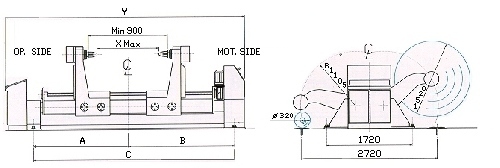

| PBF 182 |
| Width (mm) |
1800 |
2000 |
2200 |
2500 |
2650 |
| A |
1735 |
1835 |
1935 |
2085 |
2160 |
| B |
1905 |
2005 |
2105 |
2255 |
2330 |
| C |
3640 |
3840 |
4040 |
4340 |
4490 |
| X Max. |
1900 |
2100 |
2300 |
2600 |
2750 |
| Y |
4280 |
4480 |
4680 |
4980 |
5130 |
| Weight (kg) |
4400 |
4500 |
4600 |
4800 |
|  |
|
|
|
