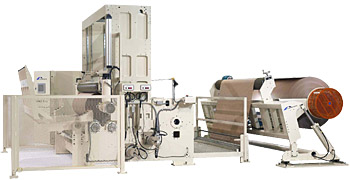

Model 210 Two-Drum Surface Slitter Winder
The Catbridge Model 210 winder incorporates a shaftless floor pick-up unwind, auto knife positioning, a dual bowed roll system, precise tension control, and roll eject and discharge systems.
The Model 210 can be configured and equipped to convert a very wide variety of materials ranging from heavy paperboard to ultralight nonwovens.
Standard Features:
- Shear or score slitting
- Programmable profile drum torque
- User-friendly controls
- Remote support, data logging, recipe control
- Programmable tension and density controls
- Automated roll cycle features
Optional Features:
- Automatic knife positioning
- Dual bowed rolls for slit separation
- Shafted or shaftless rewinding
- Driven and carbon-fibre roll options
- Fully automatic material handling systems
- Integrated or separate J-table
- Unloading conveyors
- Splicing table
| SPECIFICATIONS |
210 |
210 HD |
210 HB |
| Web Widths: |
1320 - 5580mm |
| Max. Rewind Diameter: |
1520mm |
1830mm |
2140mm |
| Max. Unwind Diameter: |
Custom (max. roll weight 4545kg) |
| Max. Speed: |
1067m/min |
1525m/min |
1525m/min |
|  |
