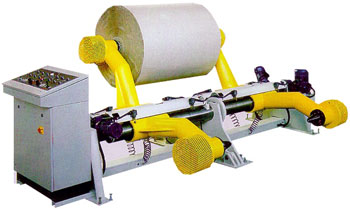

Midiroll Shaftless Unwind Stand
This shaftless unwind is an excellent entry level machine suited to both the paper converting and corrugating industries.
| Max. web width: |
1500mm |
| Max. roll diameter: |
1500mm |
| Max. reel weight: |
2140kg |
Single or double position available.
If fitted with pneumatic disc brakes, it can be controlled by an automatic tension control system. Expanding core chucks are available on request.
| Midiroll 15/15/15 |
| D |
1300 |
1400 |
1500 |
| I |
2050 |
2300 |
2300 |
| Width (mm) |
1300 |
1400 |
1500 |
| X Max. |
1450 |
1550 |
1650 |
| A |
1560 |
1610 |
1660 |
| B |
3120 |
3220 |
3320 |
| Y |
4100 |
4200 |
4300 |
| Weight (kg) |
2000 |
2070 |
2140 |
|
