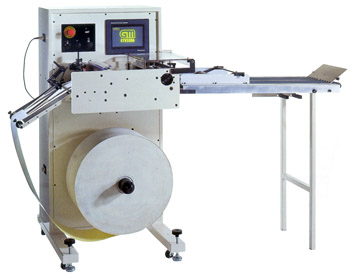

ETV-A Sheeter

The ETV-A is one of the most versatile label sheeters available on the market. The ETV-A supercedes the popular ETV series and incorporates several new features.

The ETV-A is available in two web widths: 330 mm and 515 mm. The guillotine cutter is also suitable for cutting heavy materials. The sheeter easily adjusts to cutting by interval, length or print marks with a resolution of 0.1 mm and an approximate accuracy of +/- 0.15 mm.

The ETV-A features:

• User-friendly touchscreen display with current production updates.
• Built-in 'window detector' allows for safer cutting and fault detection
• Automatic register control adjusts for changes in sheeter speed.
• Easy change-over from inline to offline operation

Optional equipment includes:

• Print mark reader for cutting by print marks.
• Length slitting knives (fixed), includes holders (razor blade type, max. 2 knives).
• Length slitting knives (rotary top and bottom cutter, max. 6 knives).
• Separate unwind stand to increase unwind diamater capacity to 1000 mm.
