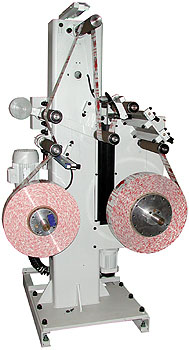

Babycat Inspection Doctoring Machine
The Babycat is an inspection doctoring machine suitable for the following materials:
- Shrink and stretch sleeves
- Films
- Papers
- Aluminium Foils
- Laminates
Primarily used in conjunction with the DCM Sleeve, the DCM Babycat can be used to control and correct defective sleeve rolls. Problems such as print faults, bad alignment, poor tension or seaming problems can be detected and rectified using the Babycat.
| Specifications |
| Maximum web width: |
250mm |
| Maximum roll diameter: |
600mm |
| Maximum roll weight: |
75kg |
| Maximum speed: |
300m/min |
Features
- Bi-directional operation
- Automatic tension control
- Automatic traverse rewinding
- Automatic web guide
- Splicing table with grippers
- Anti-static bar
- UV lamp for inspection of the solvent line
- Seam integrity can be monitored with an injection of air when producing unperforated sleeves.
Options
|
