Bimec

TCA Series Duplex Turret Slitter Rewinder

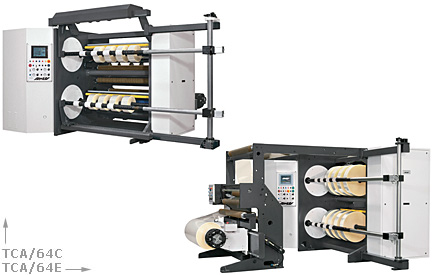

Duplex Turret Slitter Rewinder

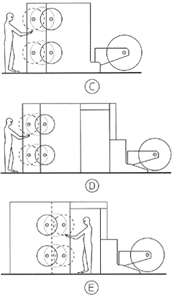

TCA Diagram
TCA Diagram

The Bimec TCA series are high-speed, high-production turret slitter rewinders.

Suitable for plastics, films, papers and laminates, the TCA series feature a dual shaft turret system. This allows for the unloading of finished rolls from one shaft while production continues on the other.

Other features include:

  • Pneumatic differential rewind shafts
  • Automated tension control systems
  • Operator friendly roll handling equipment
  • Shaftless Unwind
  • Laser beam core positioning
  • Touch screen control interface

The TCA series is available in three models, TCA/44, TCA/64 and TCA/84. These models are available in five different configurations.

Specifications: TCA/44TCA/64TCA/84
Web Widths: 1000/1300/1600mm
Max. Unwind Diameter: 1000mm
Max. Rewind Diameter: 450mm 610mm 810mm
Min. Slit Width: 25mm
Max. Speed: 800m/min

Video: Bimec TCA Turret Slitter Rewinder (3.6Mb).
This download requires Windows Media Player.
